Unstable Orbits and the Three-Body Problem • orbitr

library(orbitr)

If you start plugging in random masses and velocities, you’ll quickly discover that most configurations are wildly unstable. This isn’t a bug — it’s physics. Stable orbits are the exception, not the rule.

In a two-body system, stability is relatively easy to achieve: give the smaller body the right velocity at the right distance and it traces a clean ellipse forever. But the moment you add a third body, things get chaotic. The three-body problem has no general closed-form solution — small differences in initial conditions lead to dramatically different outcomes, including bodies being flung out of the system entirely.

A Chaotic Triple-Star System

Here’s an example: three equal-mass stars arranged in a triangle with slightly asymmetric velocities. It starts off looking like an interesting dance, but the asymmetry compounds and eventually one or more stars get ejected:

three_body <- create_system() |>
  add_body("Star A", mass = 1e30, x = 1e11, y = 0, vx = 0, vy = 15000) |>
  add_body("Star B", mass = 1e30, x = -5e10, y = 8.66e10, vx = -12990, vy = -7500) |>
  add_body("Star C", mass = 1e30, x = -5e10, y = -8.66e10, vx = 14000, vy = -8000) |>
  simulate_system(time_step = 3600, duration = 86400 * 365 * 3)

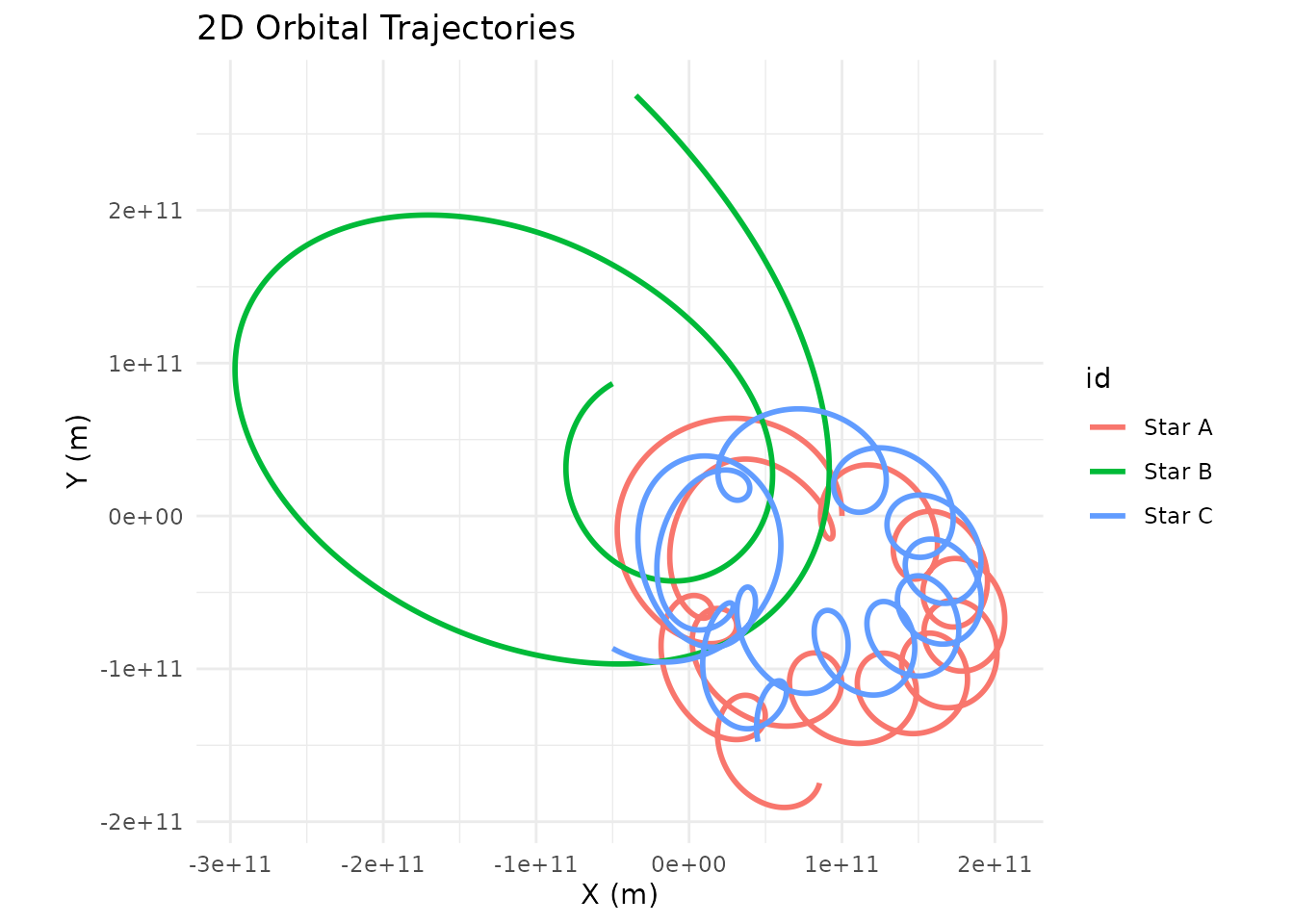

three_body |> plot_orbits()

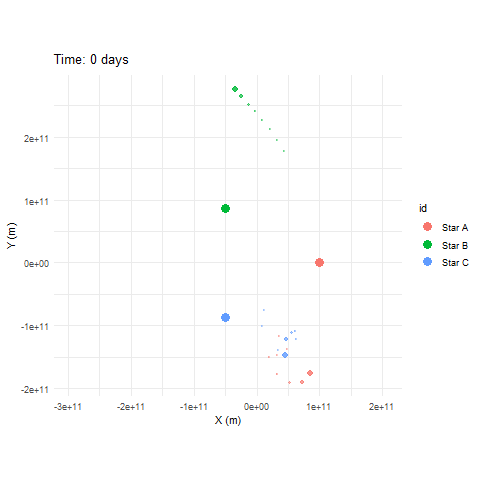

The static plot is honestly hard to read — three crossed paths without a sense of when anything happens. Animating it makes the chaos legible. Watch the slingshot ejection unfold in real time:

animate_system(three_body, fps = 15, duration = 6)

This is actually what happens in real stellar dynamics — close three-body encounters in star clusters frequently eject one star at high velocity while the remaining two settle into a tighter binary. The process is called gravitational slingshot ejection.

Troubleshooting Unstable Simulations

If your simulations are producing messy, diverging trajectories, here are a few things to check before assuming something is wrong:

Velocity too high or too low. At a given distance $r$ from a central mass $M$ , the circular orbit speed is $v = \sqrt{GM/r}$ . Deviating significantly from this produces eccentric orbits or escape trajectories.

Bodies too close together. Close encounters produce extreme accelerations that can blow up numerically. Try increasing softening or using a smaller time_step.

Three or more bodies. Chaos is the natural state of N-body systems. The stable examples in the documentation are carefully tuned — don’t expect random configurations to behave.

Time step too large. If bodies move a significant fraction of their orbital radius in a single step, the integrator can’t track the orbit accurately. Try halving time_step and see if the result changes.

The built-in constants and examples in orbitr are designed to give you stable starting points. From there you can tweak parameters and watch how the system responds — that’s where the real intuition for orbital mechanics comes from.
